AIR SLIDE FABRIC(FLUIDIZATION CLOTH)

Anthonor® supply all kinds of air slide fabric(fluidization cloth) for conveyance of dry bulk powders, we accept customization for your machine.First grade quality and competitive price to let our products share a good reputation all over the world. We also accept customization.
Capacity: 500 ㎡/ month.
Max Width: 2.6 m.
Thickness: 4~10 mm.
Heat-resistant: 160 ℃ ~ 200 ℃.

In Stock N/A , , , .
contact for price

Specification sheet of polyester Air slide Fabric:

Product NamePE Air slide Fabric
Thickness( mm )4 ~ 10
Gram Weight( gsm )3200 -7600
Air permeability( L/m2.s )65 ~ 100
Elongation

(Strength: 2000 N / 2 cm )

Warp1.4 ~ 2.5 %
Weft0.65 ~ 1.2 %
Max. Operating Temp.160 ℃ ( 320 ℉)
Ultimate Temp.( Instant )200 ℃ ( 392 ℉)
Number of plies5

Ps: Tolerance of thickness: +/- 0.3mm , gram weight: +/- 5%, air permeability: +/- 10%.

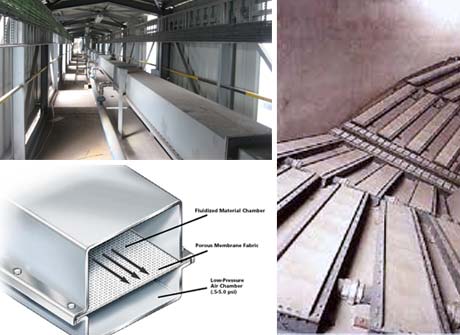

Air slide Fabrics are air permeable fabrics used in air activated conveyors or bin/silo aerators for the conveyance of dry bulk powders. It is also be called air slide belt, air slide cloth, air slide canvas, air slide membrane. We have the most advanced equipment, same as every other respected competitors.

We supply two kinds of Air slide Fabric:

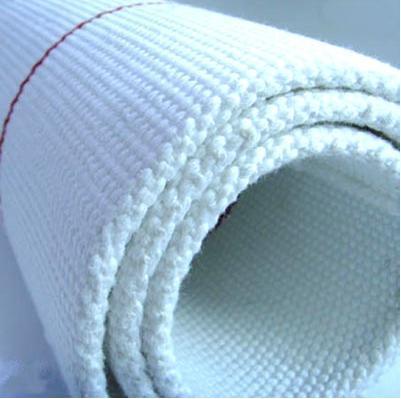

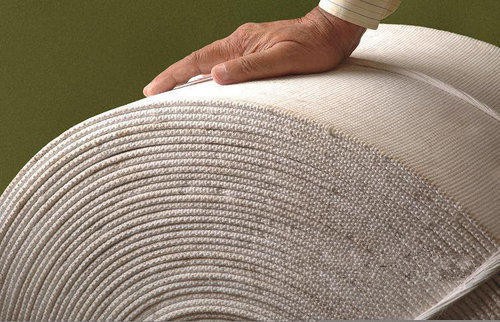

Filament Polyester Air slide Fabric                                                            Spun Polyester Air slide Fabric

AIR SLIDE FABRIC(FLUIDIZATION CLOTH) AIR SLIDE FABRIC(FLUIDIZATION CLOTH)

Our Air slide Fabric has great performances of tensile strength, air permeability, service life, and heat-resistance. The Air slide Fabric is better than spun cloth in these areas.

Applications of Airslide Fabric

Our product mainly used in air activated conveyors or bin/silo aerators for the conveyance of dry bulk powders. Cement industry: cement bulk cement trucks,boats; Mining: alumina,lime,fly ash,phosphate; Chemical industry: soda; Power: fly ash, desulfurization; Food industry: flour.

AIR SLIDE FABRIC(FLUIDIZATION CLOTH)
