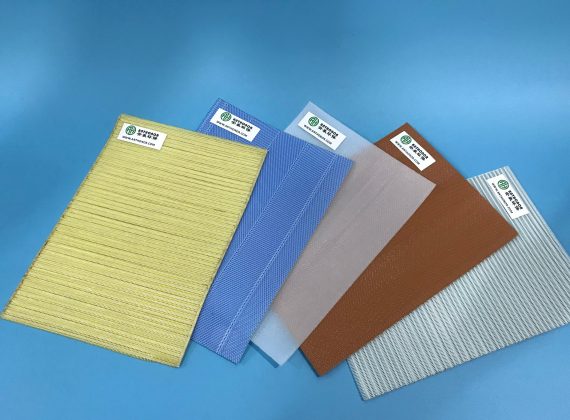

POLYESTER PRESS FILTER BELT

Anthonor® produce all kinds of polyester press filter belt for press filter machine.
It is applicate for sludge dewatering of various filtration industries,include paper mills;steel plant;chemical plant and sewage treatment etc.

contact for price

Polyester press filter belt/Sludge dewatering belt/Press filter machine cloth/Polyester press filter cloth/Belt press filter belts

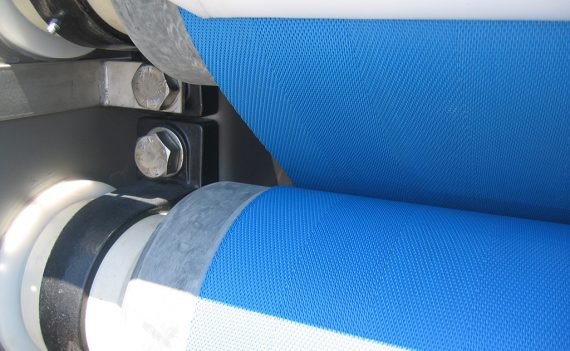

Press filter belt, as its name implies, is designed for solid/liquid separation, especially sludge dehydration in sewage treatment industry. Made of high quality polyester, our range of belt is heat-set at exacting temperature and tensioned to achieve much better operational stability. It is suitable for press belt filter and various vacuum belt filters.

Advantages

Unique structure with high drainage speed.
Excellent water and air permeability yet not allowing the sludge.
Superb resistance to acid, alkali and chemical solvents.
Good temperature resistance up to 180°C.
Easy to peel off filtered cake after filtration.
Dramatically corrosion resistance for a longer service life.

Applications

Sludge filtering.
Pulp squeezing in paper mills.
Fruit juice squeezing.
Waste water treatments.
Paper and tissue plants.
Coal separating plants, etc.

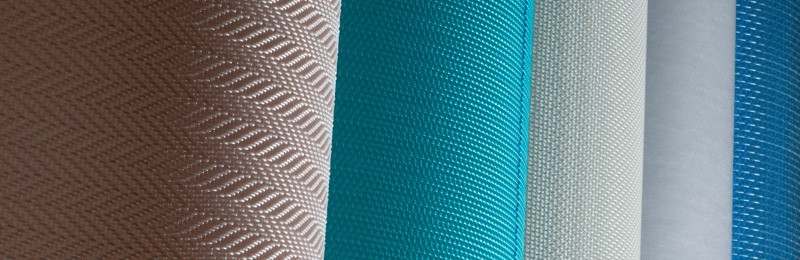

Our range of polyester press filter belts are available in various woven patterns, such as three-shed stain woven, four-shed level woven, four-shed stain woven as shown in the following pictures.





Type Diameter
(mm)
Density

(counts/cm)

Strength
(N/cm)
DI
S/5L
Weight
(gsm)
Thickness
(mm)
Air
permeability
(m³/㎡.h@200pa)

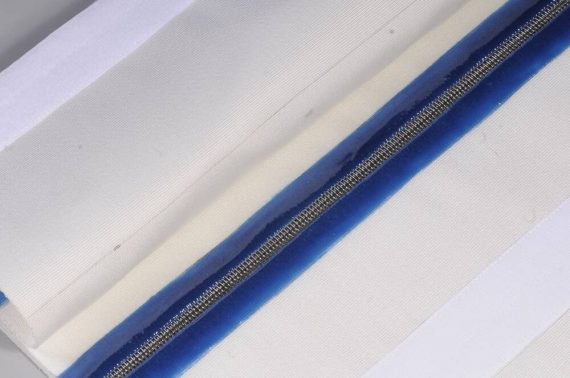

Warp Weft Warp Weft Surface Metal clipper joint
AH-PF01 0.50 0.70 24 9 2000 900 56.4 1230 1.90 6130
AH-PF02 0.50 0.80 27 8.5 2100 900 60.3 1540 2.20 5120
AH-PF03 0.50 0.70 28 8.5 2200 900 63 1530 2.10 4120
AH-PF04 0.50 0.90 23 5.5 2000 900 48 1400 1.90 6800
AH-PF05 0.70 0.80 16.3 5.9 3200 1200 70 1450 1.976 5500
AH-PF06 0.70 0.90 17 4.5 2200 900 38.6 1700 2.0 7920
AH-PF07 0.70 0.90 16.3 5.5 3200 1200 50 1520 2.263 6500
AH-PF08 0.90 1.10 12.5 3.8 3600 900 32.4 1600 2.60 9610
AH-PF09 0.90 1.10 16 6.3 4500 1200 90 2450 2.843 3800
