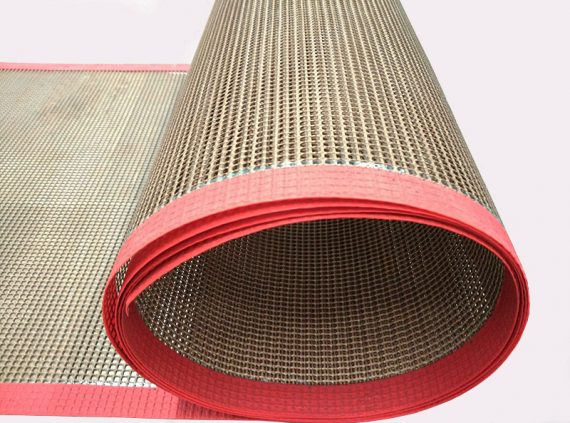

TEFLON(PTFE) MESH BELT

Anthonor® is specilized in manufacturing all ranges of Teflon mesh belt.
Our Teflon mesh belt are applicate for conveying products within highly efficient air distribution systems allowing optimised moisture removal to take place and is commonly used within ultra violet and infra red dryer units.

contact for price

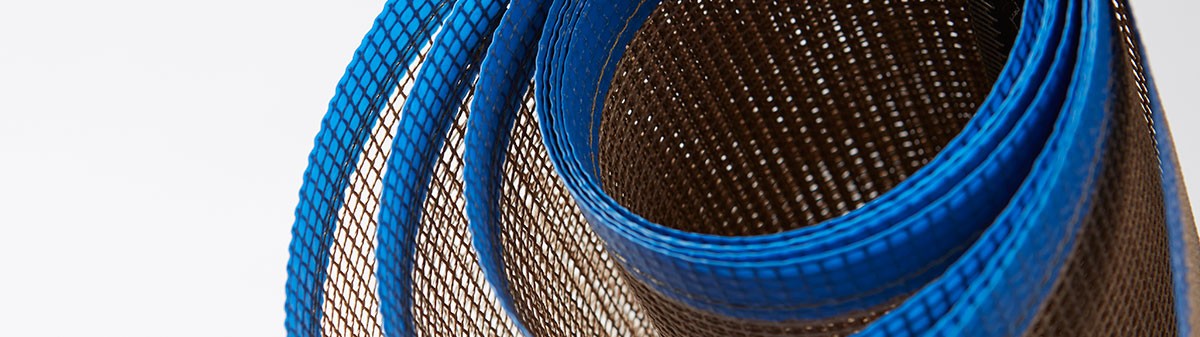

Teflon Mesh Belts – Teflon open mesh belting is ideally suited for conveying products within highly efficient air distribution systems allowing optimised moisture removal to take place and is commonly used within ultra violet and infra red dryer units.
The open area allows maximum air flow optimising drying times whilst its extreme properties make it a natural choice for dryer manufactures.

Applications
Teflon mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.
Other applications range from the drying of cereals, non woven’s, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.

Features and Benefits
Teflon open mesh conveyor belting is light weight and cost effective and is therefore easy to handle and less expensive than wire alternatives that can be difficult to replace. Often supplied with a metallic clipper type fastener these style of belts are easily removed and replaced, minimising downtime and saving money. This material can be offered in carbon loaded black, providing antistatic properties.

Material Properties
1) Temperature resistant from -73°C to plus 260°C
2) Chemical Inertness
3) Ultraviolet, Infra-red, microwave, radio frequency resistance
4) Food Approval (USFDA)
5) Non-Stick surface
6) Lightweight and energy efficiency for economical operation

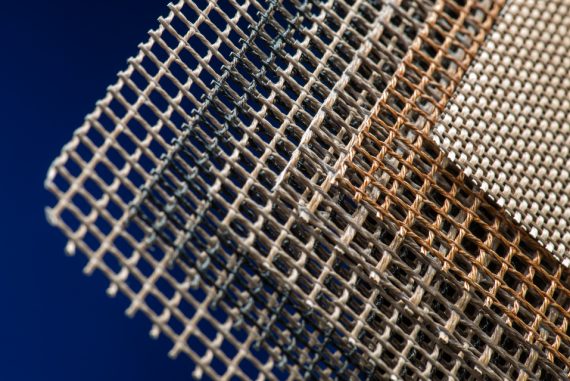

Additional Information

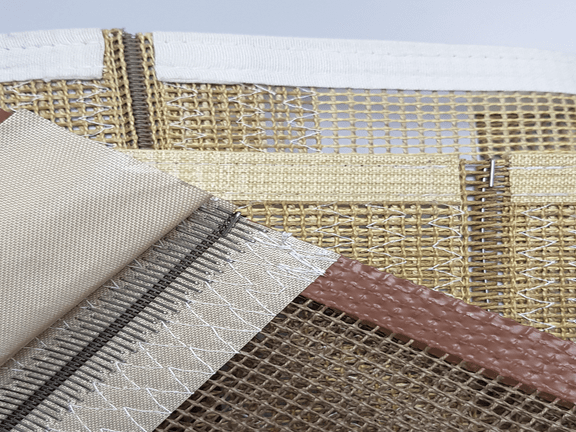

4×4 open area mesh is available in widths up to 5000mm wide and can be supplied at any length required. In addition film, glass or kevlar can be applied as edge reinforcement depending of the environment it will be used within. There are various methods of joining screen-printing belts however the metallic clipper or spiral types are more typical.
