FILTER BAG SEWING THREAD

Anthonor® supply all kinds of sewing thread for filter bag sewing.
Our sewing thread include:Polyester sewing thread;Polyethylene sewing thread;PTFE sewing thread;Aramid sewing thread and Fiberglass sewing thread etc.

In Stock N/A , , , .
contact for price

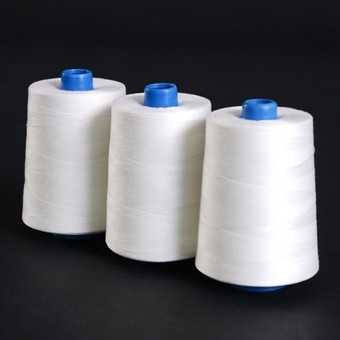

1.Polyester sewing thread

FILTER BAG SEWING THREAD

Performance

a. Not easy aging
b. High tensile strength
c. Very low shrinkage
d. Excellent abrasion resistance
e. Pollution-free
f. Smooth convenient for sewing
g. Cost effective

NO.ParameterValueTesting environment
1Yarn varieties20/3Normal Temperature
2Tensile strength3600 CNNormal Temperature(Winter≤16℃)
3Breaking elongation70MM
4Breaking strength125 CN/tNormal Temperature
5Elongation14%Normal Temperature
6net weight per cone250g
7Length per cone2350m

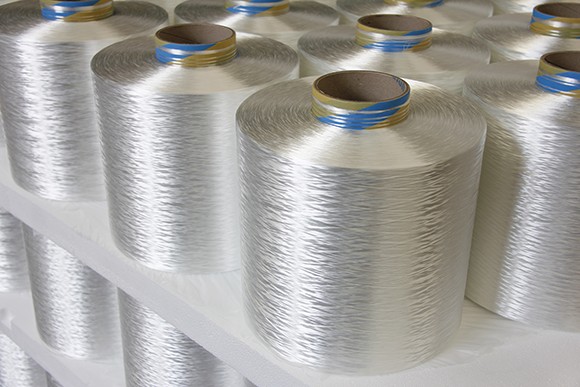

2.Ultra-high molecular weight polyethylene thread

FILTER BAG SEWING THREAD

Special performance

1.High specific strength, high specific modulus. Specific strength is more than 10 times the same section of wire, than the modulus after the special grade carbon fiber.
2.The fiber density is low, the density is 0.97-0.98g / cm3, can float on the surface.
3.Low elongation at break, breaking power, has a strong ability to absorb energy, which has a prominent impact resistance and cutting resistance.
4.Anti-ultraviolet radiation, anti-neutron and γ-ray, high specific energy absorption, low dielectric constant, high transmittance of electromagnetic waves.
5.Resistance to chemical corrosion, wear resistance, a longer flex life.

Physical properties

Density: 0.97 to 0.98 g / cm3
Intensity: 2.8 to 4 N / tex
Modulus: 91 to 140 N / tex
Elongation: 3.5% ~ 3.7%
Impact absorption energy than para-aramide fiber nearly doubled, good wear resistance, friction coefficient is small, but the stress is only 145 ~ 160 ℃

Application

Bullet-proof protective equipment, rope, cable, fishing nets, sports equipment

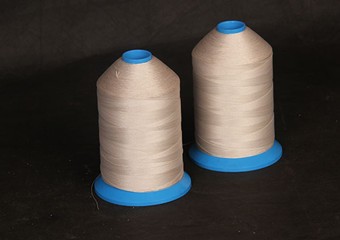

3.PTFE sewing thread

FILTER BAG SEWING THREAD

Standard density Types of PTFE thread(Can be customized)

1350±50 dtex(1200 den) 2600±100 dtex(2400 den)
1600±50 dtex(1500 den)1350±50 dtex     (1200 den)

Standard Types of PTFE thread(Can be customized)

solid thread twin thread coloured thread
mixed colour threadpure thread mixed thread

Standard Net weight/spool of PTFE thread(Can be customized)

500g600g
800g1000g

Notice:
1.We use “dtex” as the unit of linear density(a certain quality of unit length) according to the national standard and requirement. 1350 dtex means that the quality of 10000 meters sewing thread is 1350g. We also use another linear density unit “den”(Daniel) or “D”,which is the quality of the 9000m length, so 1 dan equal 0.9 dtex.
2.In order to avoid harmful gases, please donot burn the PTFE.
3.After sewing PPS filter bag,the resilience of pinhole may be bad and pinhole may be bigger.So we suggest using thinner needle or contact our engineer for better suggestion.
4.To guarantee the quality of the PTFE thread,all of the thread made from PTFE yard and without knot.
5.Because PTFE products are slippery, you can add a little silicone oil if needle skip during operation.

PTFE is a fluorocarbon solid, as it is a high-molecular-weight compound consisting wholly of carbon and fluorine. PTFE is hydrophobic: neither water nor water-containing substances wet PTFE, as fluorocarbons demonstrate mitigated London dispersion forces due to the high electronegativity of fluorine. PTFE has one of the lowest coefficients of friction of any solid. PTFE is used as a non-stick coating for pans and other cookware. It is very non-reactive, partly because of the strength of carbon–fluorine bonds, and so it is often used in containers and pipework for reactive and corrosive chemicals. Where used as a lubricant, PTFE reduces friction, wear and energy consumption of machinery.

PTFE Sewing thread technical data

NO.ITEMIndexTesting environment
1linear density1200±50denNormal Temperature
2Tensile strength≥33NNormal Temperature(Winter≤16℃)
3breaking strength≥2.6cN/denNormal Temperature
4Elongation4~6%Normal Temperature
5Thermal shrinkage≤2.5%260℃ 2h
6Plied yarn3
7Continue Lenght
8Roller net weight
9Lenght/1000g

Application of PTFE sewing thread

   Name             Density types                                  Application
special thread for filter bag sewing1350±50 dtex     (1200 den)double needle thread for sewing filter
Special thread for the top or the bottom of filter bag2600±100 dtex   (2400 den)Singer needle thread for sewing the top or the bottom of filter bag
Special thread for PPS filter bag1600±50 dtex     (1500 den)for sewing PPS filter bag
Coloured sewing thread for filter bag sewing1350±50 dtex     (1200 den)special using thread for filter bag

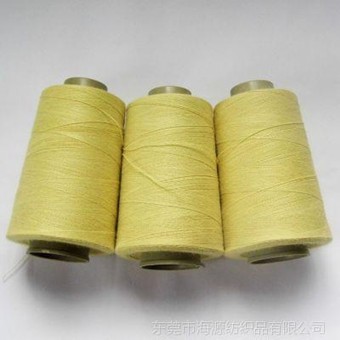

4.Aramid sewing thread

FILTER BAG SEWING THREAD

The advantages of Aramid sewing thread

Aramid main advantages are high strength and low weight. Like graphite, it has a slightly negative axial coefficient of thermal expansion, which means aramid laminates can be made thermally stable in dimensions. Unlike graphite, it is very resistant to impact and abrasion damage. It can be made waterproof when combined with other materials like epoxy. It can be used as a composite with rubber retaining its flexibility. High tensile modulus and low breakage elongation combined with very good resistance to chemicals make it the right choice for different composite structural parts in various applications.

Aramid Sewing thread technical data

Test itemTest result
Deviation Weight per 100m1.8%
CV of Deviation Weight per 100m2.0%
Single Breaking Tensile Strength2525.2 CN
Single Breaking Tenacity28.5 CN/Tex
CV of Single Breaking Tensile Strength4.69%
Single Breaking Elongation135.6 mm
Ration of Elongation27.12 mm
Actual Twist56.4 twist/10CM
Length/1kg11850m
Net Weight per roller1.110 ~ 1.120 kg

5.Fiberglass sewing thread

FILTER BAG SEWING THREAD

The advantages of Fiberglass Sewing Thread

The glass fibers are made of various types of glass depending upon the fiberglass use. These glasses all contain silica or silicate, with varying amounts of oxides of calcium, magnesium, and sometimes boron. To be used in fiberglass, glass fibers have to be made with very low levels of defects. Fiberglass is a strong lightweight material and is used for many products. Although it is not as strong and stiff as composites based on carbon fiber, it is less brittle, and its raw materials are much cheaper. Its bulk strength and weight are also better than many metals, and it can be more readily molded into complex shapes.

Fiberglass Sewing Thread technical data

NO.ITEMFiberglass Thread technical data
1Diameter6μm
2Twist DirectionZ
3Twist Number280 t/m
4LiNear Density204 tex
5Breaking StrengthQualified:78.4(8.0)N (kgf)
First class:88.3(9.0)N (kgf)
6Roller Net WeightAbout 1.5kgs
7Length/1kgAbout 4800m
